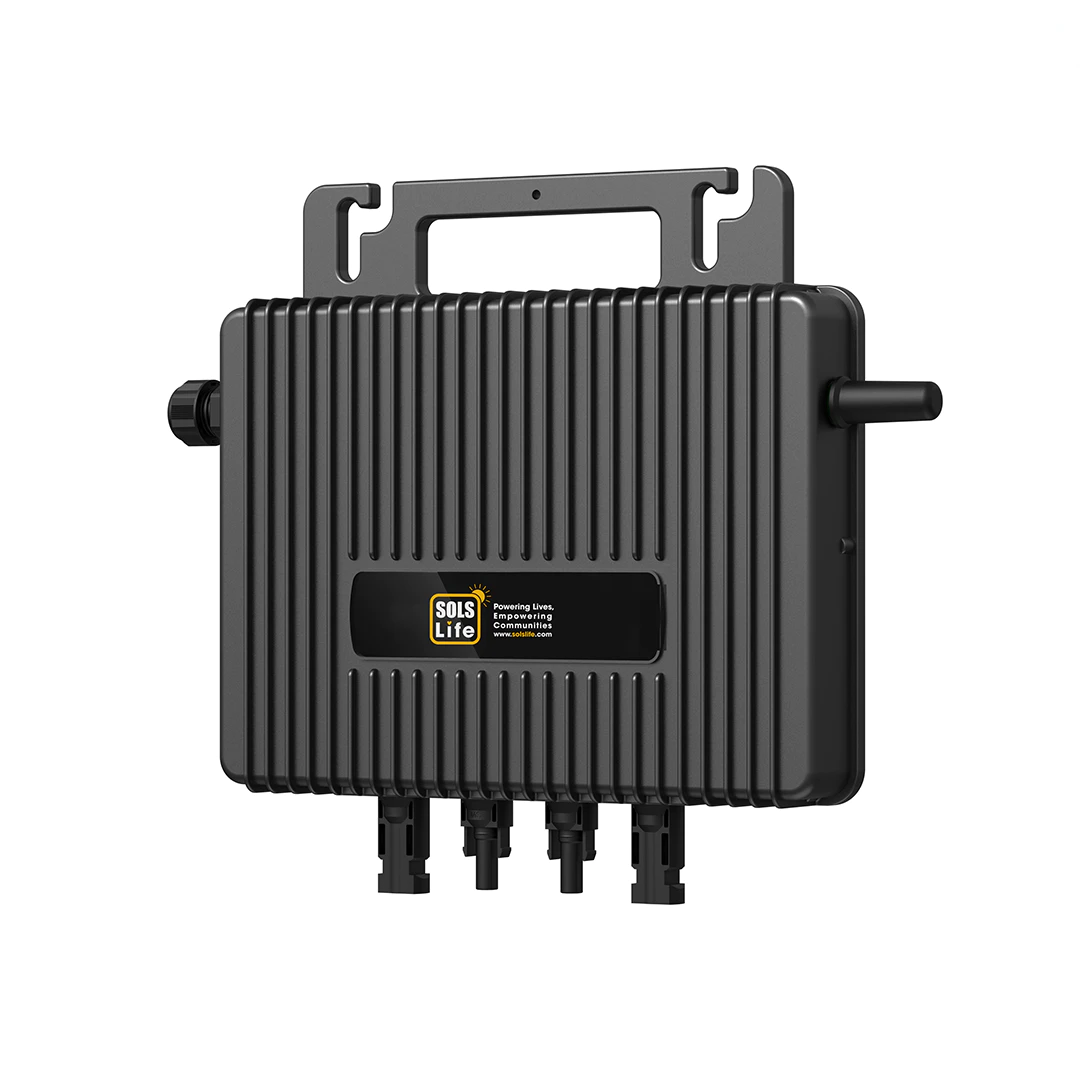

Solar Mas 2S Pro Microinverter
A 2kW microinverter that runs up to four solar panels independently, each on its own MPPT tracker, so a shaded or faulty panel never drags the rest of the array down. The step up from the 1S Pro when the roof has the space, with the same Sub-1G and WiFi monitoring, 96.7% peak efficiency, and IP67 housing rated from -40 to +65°C.
- Category:
- Grid-Tied Inverters
Product Specifications
- Model
- HYX-M2000-S
- Nominal Output Power
- 2,000VA
- PV Modules Supported
- 4
- Typical Module Compatibility
- 400 to 670+ W
- MPPT Voltage Range
- 16 to 60V
- Max. Input Voltage
- 65V
- Start-up Input Voltage
- 20V
- Max. Input Current
- 4 x 16A
- Max. Short-circuit DC Input Current
- 4 x 20A
- Nominal Output Voltage
- 220V / 230V / 240V
- Nominal Output Current
- 9.09A / 8.70A / 8.33A
- Adjustable Output Voltage Range
- 183 to 276V
- Nominal Frequency
- 50 / 60Hz
- Power Factor
- Over 0.99 by default, adjustable from 0.8 leading to 0.8 lagging
- THDi
- Under 3%
- Max. Units Per Branch
- 3 on 10AWG, 2 on 12AWG
- Peak Efficiency
- 96.70%
- Nominal MPPT Efficiency
- 99.80%
- Night-time Power Loss
- Under 30mW
- Operating Ambient Temperature
- -40 to +65°C
- Dimensions (W x H x D)
- 310 x 236 x 35.5mm
- Weight
- 5kg
- Degree of Protection
- IP67
- Cooling
- Natural cooling, no fans
- Communication
- Sub-1G or built-in WiFi
- Type of Isolation
- High-frequency transformers, galvanically isolated
- Protection
- Input reverse connection, output overcurrent, output overvoltage, anti-islanding, output short-circuit
- Warranty
- 12 years standard, 25 years optional
