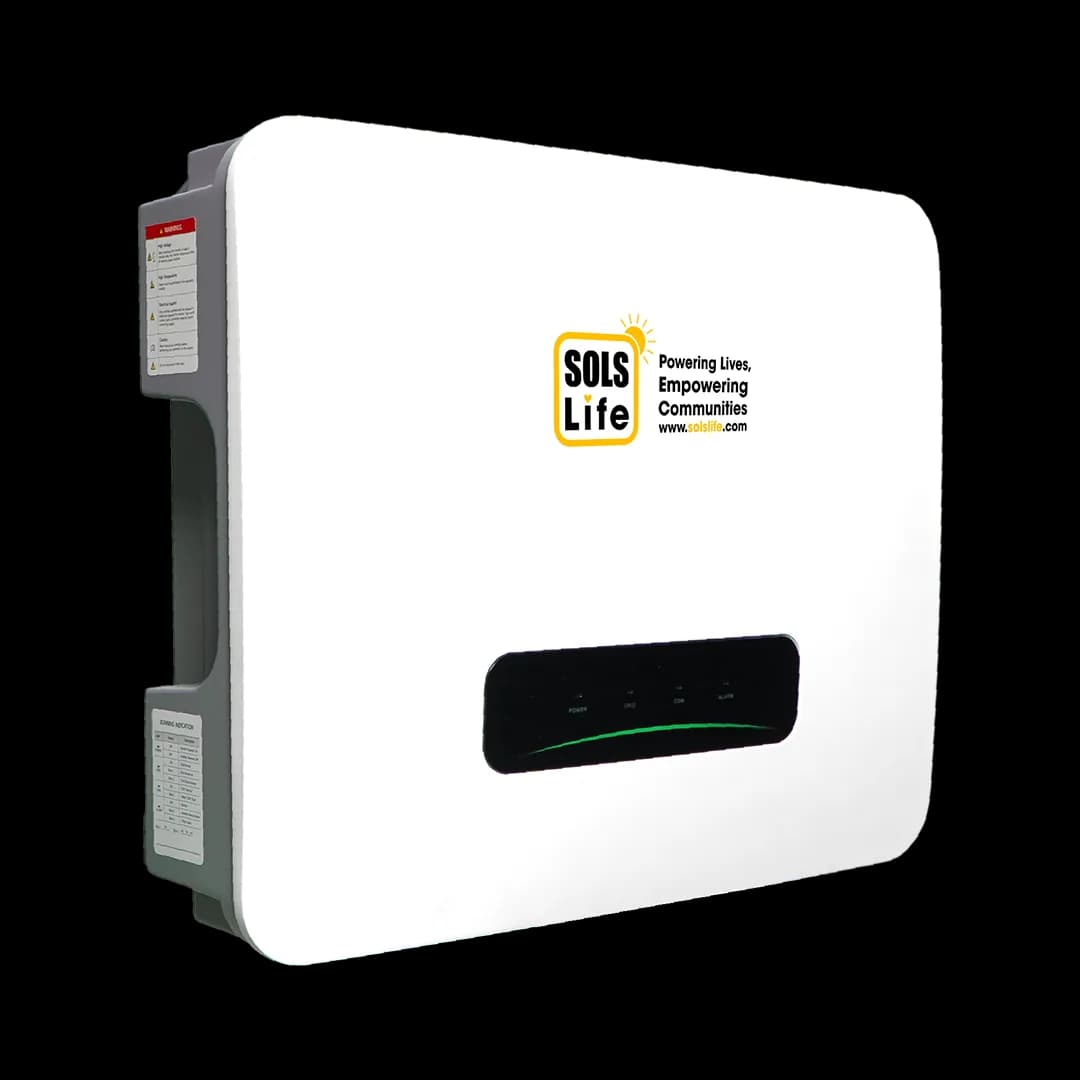

Inverter Grid Pro
A premium grid-type inverter, mainly used for the Net Energy Metering (NEM) scheme.
- Category:
- Grid-Tied Inverters
Product Specifications
- Series
- TRX Series (Single Phase 4kW to 5kW, Three Phase 5kW to 12kW)
- Nominal Output Power
- 4,000W to 12,000W
- Max. Input Power
- 6,400W to 19,200W
- Max. Apparent Power
- 4,400VA to 13,200VA
- Max. Input Voltage
- 600V to 1,100V
- Start-up Voltage
- 100V to 160V
- Nominal Output Voltage
- 1-phase (1/N/PE): 220V, 230V or 240V; 3-phase (3L/N/PE): 220/380V or 230/400V
- Max. Input Current per MPPT
- 18A
- Max. Short-circuit Current
- 24A
- Number of MPPTs
- 2
- Adjustable Power Factor
- 0.8 leading to 0.8 lagging
- Max. Efficiency
- 98.2% to 98.5%
- Operating Temperature Range
- -30°C to +60°C
- Communication
- RS485 / 4G / WIFI
- Weight
- 11.6kg to 21kg
- Dimensions (W x H x D)
- 340 x 360 x 136mm to 522 x 416 x 162.5mm
- IP Rating
- IP66
- Protection Features
- Anti-islanding, DC reverse polarity, DC/AC surge (Type II), AC over-current/short-circuit/over-voltage, ground fault detection, AFCI
