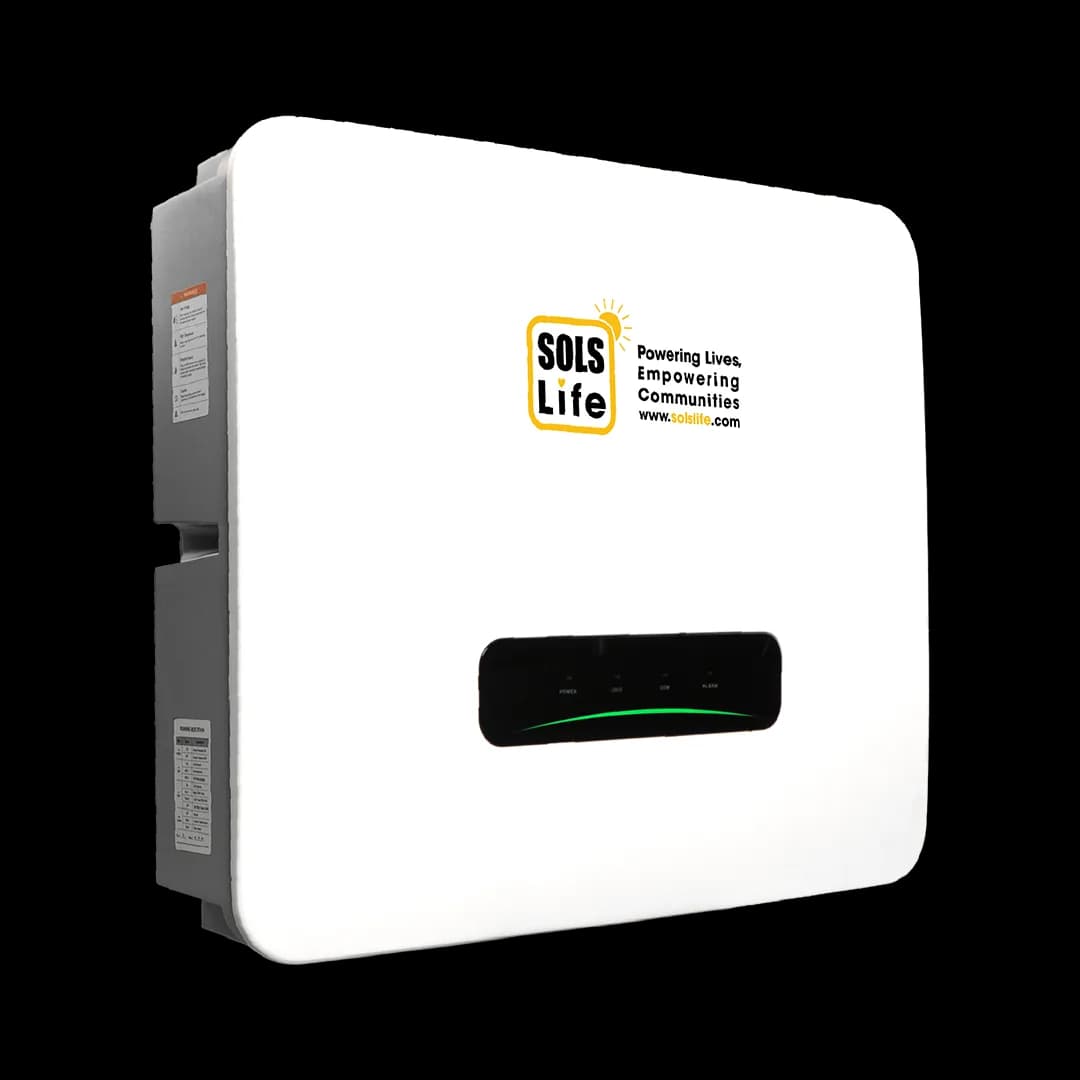

Inverter Hybrid Pro
A premium hybrid inverter used for battery energy storage systems (BESS).
- Category:
- Grid-Tied Inverters
Product Specifications
- Series
- SRJ-KL Series (5kW to 12kW)
- Nominal Output Power
- 5,000W to 12,000W
- Max. Array Power
- 10,000W to 24,000W
- Max. Input Voltage
- 1,000V
- Start-up Voltage
- 160V
- MPPT Operating Voltage Range
- 140V to 980V
- Number of MPPTs
- 2
- Nominal Output Voltage
- 3-phase (3/N/PE), 220/380V, 230/400V or 240/415V
- Max. Output Current
- 8.4A to 20A
- Battery Type
- LiFePO4
- Battery Voltage Range
- 150V to 600V
- Max. Efficiency
- 98.6%
- Cooling
- Natural Cooling
- Weight
- 34kg
- Dimensions (W x H x D)
- 542 x 478 x 186mm
- IP Rating
- IP65
- Protection Features
- Anti-islanding, DC reverse polarity, DC/AC surge (Type II), AC over-current/short-circuit/over-voltage, ground fault detection
Download Datasheet
SRJ-KL Series Inverter DatasheetDownload PDF
